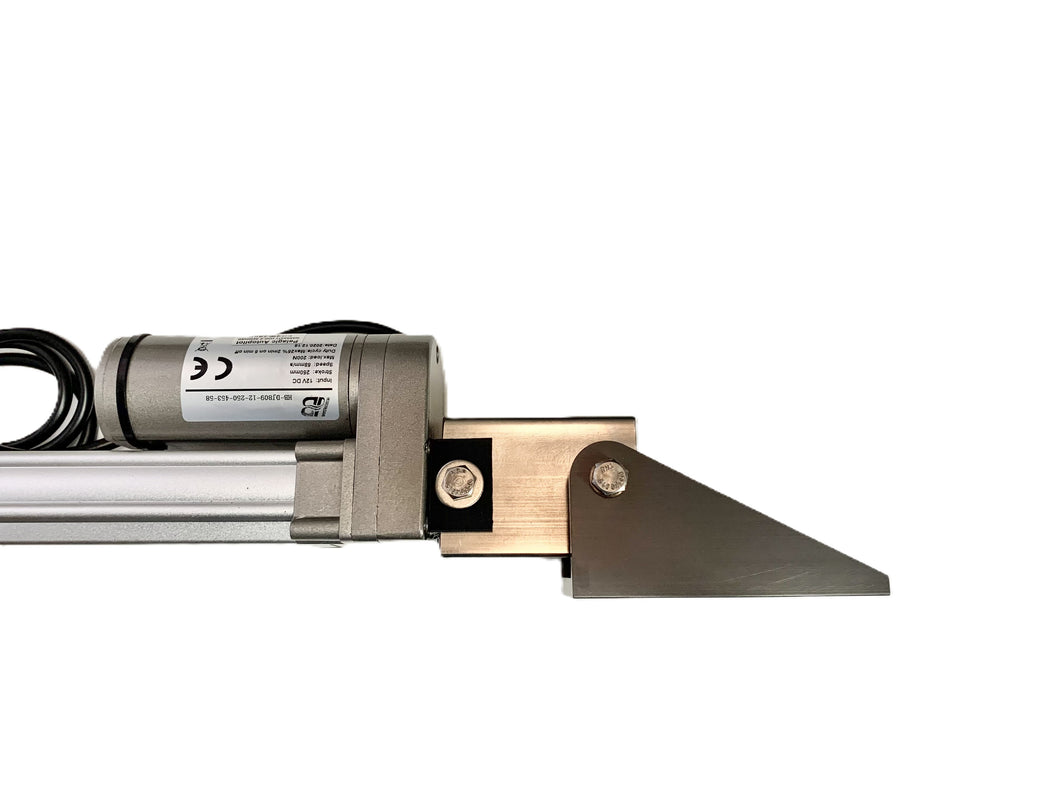

Extend the length of the standard Pelagic actuator with an extension made of 316 stainless steel. Customized for your boat, the extension is installed between the fixed end of the actuator and the actuator bracket.
The standard distance between the Pelagic base bracket pin and the tiller pin, with the rudder midships is 24-7/16" (621mm). The Pelagic bracket provides 1.5" of adjustment either in or out from that point. Anything greater will require an extension.
When ordering, please specify the distance from the center of your tiller's actuator pin to the center of the mounting point on the rail of the boat. It is recommended that the tiller pin be installed at a distance of 18" from the rudder post or virtual rudder axis, with the rudder centered.
